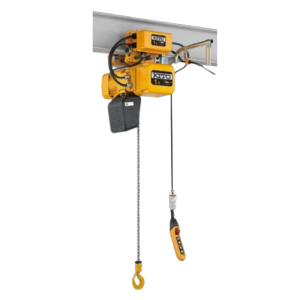

รอกโซ่ไฟฟ้า KITO ER2M Series (Electric Chain Hoist ER2M Series) 4 ทิศทาง ใช้พลังงานไฟฟ้า เป็นเครื่องทุ่นแรง ช่วยในเรื่องของการยกของหนักๆ ตัวรอกมีความแข็งแรงทนทาน สามารถควบคุมการใช้งานและดูแลบำรุงรักษาได้อย่างง่ายดาย มีให้เลือกความเร็วได้ 2 คือ Single Speed และ Dual Speed ตามการใช้งาน
| Capacity (t) |
Product Code | ER2 | MR2 | Test Load (t) |
Net
Weight (kg) |
Additional Weight per 1m Lift (kg) |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hoist Body |
Stan dard Lift (m) |
Lifting Motor | Lifting Speed (m/min) |
Load Chain |
Classifi-cation ISO/FEM /ASME | Traversing Motor | Traversing Speed (m/min) |
Flange Width B (mm) | Min. Radius Curve (mm) | ||||||||||
| Output (kW) |
Rating (%ED) |
Diameter (mm) x Chain Falls | Output (kW) |
Rating (%ED) |
Stan dard |
Option | |||||||||||||
| 50 Hz |
60 Hz |
50 Hz |
60 Hz | W30 (305mm) | |||||||||||||||
| 125 kg |
ER2M001H-S/L | B | 3 | 0.56 | 60 | 14.1 | 16.9 | Φ4.3 X 1 | M5/2m /H4 | 0.4 | 40 | 20 (10) |
24 (12) |
58 to 153 |
154 to 305 |
800 | 156 kg |
58 | 0.42 |
| 250 kg |
ER2M003S-S/L | 9.1 | 10.9 | 313 kg |
|||||||||||||||
| ER2M003H-S/L | C | 0.9 | 13.4 | 16.1 | Φ6.O x 1 | 68 | 0.81 | ||||||||||||
| 500 kg |
ER2M005L-S/L | 0.56 | 3.8 | 4.6 | 625 kg |
64 | |||||||||||||
| ER2M005S-S/L | 0.9 | 7.3 | 8.8 | 68 | |||||||||||||||
| 1 | ER2M010L-S/L | D | 3.5 | 4.2 | Φ7.7 x 1 | 1.25 | 77 | 1.33 | |||||||||||
| ER2M010S-S/L | 1.8 | 7.1 | 8.5 | 84 | |||||||||||||||
| 1.5 | ER2M015S-S/L | E | 4.5 | 5.4 | Φ10.2 x 1 | 82 to 178 |
I79 to 305 |
1.88 | 110 | 2.3 | |||||||||
| 2 | ER2M020L-S/L | 3.7 | 4.4 | M4/1Am /H4 | 2.5 | 111 | |||||||||||||
| ER2M020S-S/L | 3.5 | 7.0 | 8.4 | 129 | |||||||||||||||
| 2.5 | ER2M025S-S/L | F | 5.7 | 6.8 | Φ11.2 x 1 | 100 | 3.13 | 152 | 2.8 | ||||||||||
| 3 | ER2M030S-S/L | E | 4.4 | 5.3 | Φ10.2 x 2 | 3.75 | 155 | 4.7 | |||||||||||
| 5 | ER2M050S-S/L | F | 2.9 | 3.5 | Φ11.2 x 2 | 0.75 | 100 to 178 | 1800 | 6.25 | 202 | 5.6 | ||||||||
Note: The bracketed figures in Traversing Speed are low speed. The minimum radius curve may depend on flange width. For further information, contact the nearest KITO dealer
| Capacity (t) |
Product Code |
Headroom C | D | a (MFC) |
b (MFC) |
d (MFC) |
e (MFC) |
f (MFC) |
g | h | 1 (MFC) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 kg | ER2-001H | 350 | 430 | 478(564) | 321(345) | 219(305) | 259 | 260(284) | 27 | 99 | 93(117) |
| 250 kg | ER2-003S | ||||||||||
| ER2-003H | 370 | 490 | 510(593) | 348 | 242(325) | 268 | 283 | 27 | 113 | 106 | |
| 500 kg | ER2-005L | 513(599) | 271(273) | ||||||||
| ER2-005S | 510(593) | 268 | |||||||||
| 1 | ER2-010L | 430 | 550 | 589(632) | 376 | 291(332) | 298(300) | 335 | 31 | 129 | 118 |
| ER2-010S | 598(639) | 307 | |||||||||
| 1.5 | ER2-015S | 510 | 630 | 646(738) | 427 | 308(397) | 338(341) | 384.5 | 34 | 160.5 | 137.5 |
| 2 | ER2-020L | 575 | 39 | ||||||||
| ER2-020S | 590 | 703(782) | 347(426) | 356 | |||||||
| 2.5 | ER2-025S | 625 | 840 | 736(826) | 445 | 337(427) | 399 | 437.5 | 173.5 | 142.5 | |
| 3 | ER2-030S | 785 | 920 | 703(782) | 427 | 347(426) | 356 | 397 | 44 | 216 | 82 |
| 5 | ER2-050S | 850 | 736(826) | 445 | 337(427) | 399 | 439 | 47 | 231.5 | 84.5 |
| Capacity (t) |
Product Code | ER2 | MR2 | Test Load (t) |
Net
Weight (kg) |
Additional Weight per 1m Lift (kg) |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hoist Body |
Stan dard Lift (m) |
Lifting Motor | Lifting Speed (m/min) |
Load Chain |
Classifi-cation ISO/FEM /ASME | Traversing Motor | Traversing Speed (m/min) |
Flange Width B (mm) | Min. Radius Curve (mm) | ||||||||||
| Output (kW) |
Rating (%ED) |
Diameter (mm) x Chain Falls | Output (kW) |
Rating (%ED) |
Stan dard |
Option | |||||||||||||
| 50 Hz |
60 Hz |
50 Hz |
60 Hz | W30 (305mm) | |||||||||||||||
| 125 kg |
ER2M001H-S/L | B | 3 | 0.56 | 60 | 14.1 | 16.9 | Φ4.3 X 1 | M5/2m /H4 | 0.4 | 40 | 20 (10) |
24 (12) |
58 to 153 |
154 to 305 |
800 | 156 kg |
58 | 0.42 |
| 250 kg |
ER2M003S-S/L | 9.1 | 10.9 | 313 kg |
|||||||||||||||
| ER2M003H-S/L | C | 0.9 | 13.4 | 16.1 | Φ6.O x 1 | 68 | 0.81 | ||||||||||||
| 500 kg |
ER2M005L-S/L | 0.56 | 3.8 | 4.6 | 625 kg |
64 | |||||||||||||
| ER2M005S-S/L | 0.9 | 7.3 | 8.8 | 68 | |||||||||||||||
| 1 | ER2M010L-S/L | D | 3.5 | 4.2 | Φ7.7 x 1 | 1.25 | 77 | 1.33 | |||||||||||
| ER2M010S-S/L | 1.8 | 7.1 | 8.5 | 84 | |||||||||||||||
| 1.5 | ER2M015S-S/L | E | 4.5 | 5.4 | Φ10.2 x 1 | 82 to 178 |
I79 to 305 |
1.88 | 110 | 2.3 | |||||||||
| 2 | ER2M020L-S/L | 3.7 | 4.4 | M4/1Am /H4 | 2.5 | 111 | |||||||||||||
| ER2M020S-S/L | 3.5 | 7.0 | 8.4 | 129 | |||||||||||||||
| 2.5 | ER2M025S-S/L | F | 5.7 | 6.8 | Φ11.2 x 1 | 100 | 3.13 | 152 | 2.8 | ||||||||||
| 3 | ER2M030S-S/L | E | 4.4 | 5.3 | Φ10.2 x 2 | 3.75 | 155 | 4.7 | |||||||||||
| 5 | ER2M050S-S/L | F | 2.9 | 3.5 | Φ11.2 x 2 | 0.75 | 100 to 178 | 1800 | 6.25 | 202 | 5.6 | ||||||||
Note: The minimum radius curve may depend on flange width. For further information, contact the nearest KITO dealer. The high speed is preset to the maximum speed in KITO factory. The speeds are adjustable between High and Low. Figures in ( ) are data for mechanical brake with friction clutch.

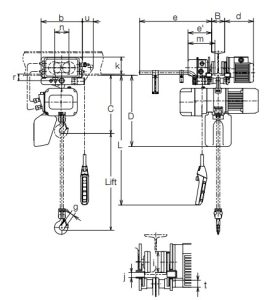

| Capacity (t) | Product Code |
Head room C | D | b | d | e | e1 | g | i | J | k | m | n | r | t | u |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 125kg | ER2M001IH-IS | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 60 | 50 |
| 250kg | ER2M003IS-IS | |||||||||||||||
| ER2M003IH-IS | 395 | 510 | ||||||||||||||
| 500kg | ER2M005IL-IS | |||||||||||||||
| ER2M005IS-IS | ||||||||||||||||
| 1 | ER2M010IL-IS | 435 | 550 | 31 | ||||||||||||
| ER2M010IS-IS | ||||||||||||||||
| 1.5 | ER2M015IS-IS | 505 | 630 | 325 | 225 | 520 | 184 | 34 | 110 | 27 | 125 | 212 | 118 | 60 | 36 | 76 |
| 2 | ER2M020IL-IS | 570 | 39 | |||||||||||||
| ER2M020IS-IS | 585 | |||||||||||||||
| 2.5 | ER2M025IS-IS | 620 | 830 | 340 | 226 | 521 | 186 | 125 | 29 | 131 | 215 | 132 | 68 | 43 | 70 | |
| 3 | ER2M030IS-IS | 765 | 900 | 44 | ||||||||||||
| 5 | ER2M050IS-IS | 840 | 910 | 400 | 281 | 528 | 192 | 47 | 140 | 44 | 145 | 233 | 150 | 86 | 54 | 56 |
